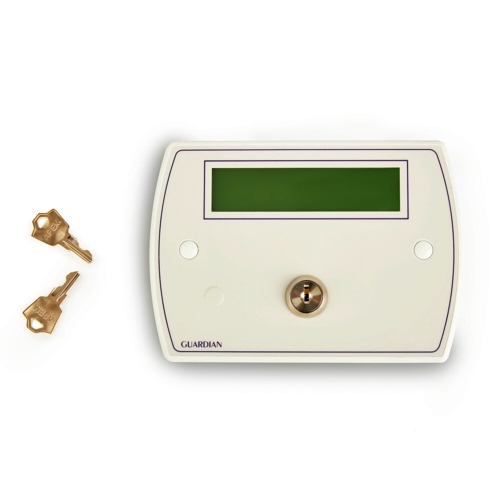

The DISP1 Alphanumeric Display Unit component of the personal alarm system, is the device used to sound the alarm and identify the location of each incident along with the level of assistance required.
The display can also show the identity of the staff member calling for assistance.
The DISP1 features a two line 16 character back lit LCD display and a multi level adjustable alarm. The unit features different tones for different levels of call as well as having the capability of sounding a different tone for selected call points (doors, drugs cupboards, telephone etc).
The DISP1 can also be setup to display specific call points (zoning) if required. There is an Open Collector output which can be connected to the RB1 Relay Board or used directly to trigger external equipment. All DISP1 Display Units are identical, but each can be configured to operate independently or as a slave display to a master unit.
The display fits onto a flush double gang metal or plastic back box.
If surface mounting is required, use the BB1 back box
